Skip-Dryer

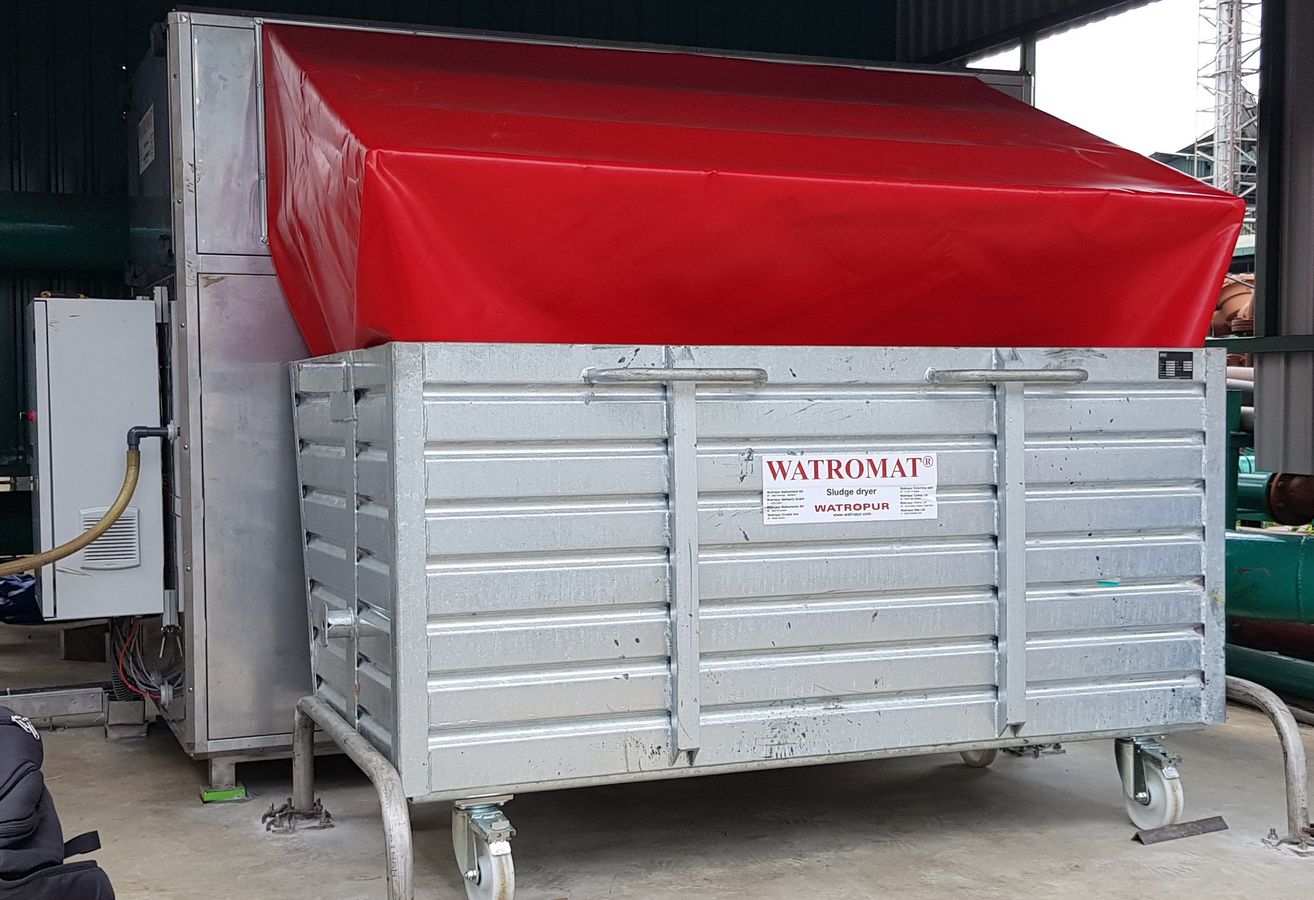

WATROMAT® skip-dryer for filter cakes sludge from plate and frame filter press, sludge from industrial or municipal waste water treatment plants, inlet 30 % dried solids, outlet 90 % dried solids, drying temperature 30˚C / 86˚F, scope of delivery: dryer with control cabinet, air duct, drying container, tilting system.
Features and benefits
- Dries up to 4 t sludge per day per container
- Needs min. 30 % dried solids
- Use 0.33 kWh power per kg separated water
- Reach 90 % dried solids
| WATROMAT® | Container volume | Water removal (dryer) | Electric power | Dimensions in meter | ||
|---|---|---|---|---|---|---|
| Model | m3 | t/day | kWh | Length | Width | Height |
| WSD01 | 0,5 | 0,1 | 2,6 | 1,7 | 1,0 | 2,2 |
| WSD04 | 1,3 | 0,4 | 7,9 | 2,2 | 1,9 | 2,0 |
| WSD08 | 1,7 | 0,8 | 12,6 | 2,2 | 2,4 | 2,0 |
| WSD12 | 2,7 | 1,2 | 16 | 3,2 | 2,6 | 2,1 |
| WSD16 | 2,7 | 1,6 | 21 | 3,2 | 2,6 | 2,1 |
| WSD20 | 3,7 | 2 | 26 | 3,8 | 3,8 | 2,1 |
| WSD24 | 3,7 | 2,4 | 31 | 3,8 | 3,8 | 2,1 |
