Container-Dryer

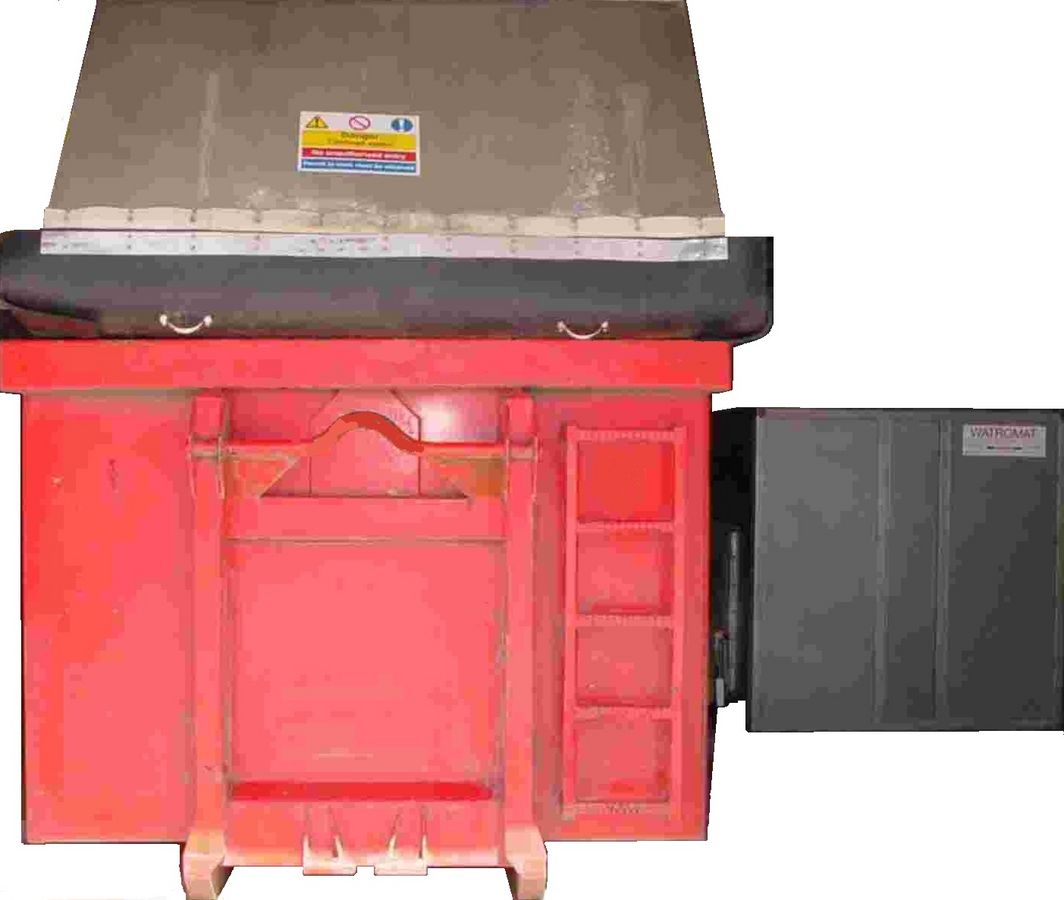

WATROMAT® container-dryer for filter cake sludge from plate and frame filter presses, sludge from industrial or municipal waste water treatment plants, inlet minimum 25 % dried solids, outlet 90 % dried solids, drying temperature 30˚C/86˚F, scope of delivery: dryer with control cabinet, air ducts, drying container
Features and benefits
- Dries up to 20 t sludge per day per container
- Needs min. 25 % dried solids
- Use 0.33 kWh power per kg separated water
- Reach 90 % dried solids
WATROMAT® | Volume container | Water removal (dryer) | Electric power | Dimensions in meter | ||
---|---|---|---|---|---|---|
모델 | m3 | t/day | kWh | Length | Width | Height |
WCD15 | 6 | 1,5 | 20 | 2,0 | 1,2 | 1,9 |
WCD30 | 9 | 3 | 40 | 3,7 | 1,2 | 1,9 |
WCD45 | 15 | 4,5 | 60 | 5,9 | 1,2 | 1,9 |
WCD60 | 20 | 6 | 80 | 7,9 | 1,2 | 1,9 |
WCD90 | 25 | 9 | 120 | 15,4 | 1,2 | 1,9 |
WCD120 | 30 | 12 | 320 | 24,9 | 1,2 | 1,9 |
